Weave Wire MeahInquiry
  • MaterialSUS 304, 304L, 316, 316L

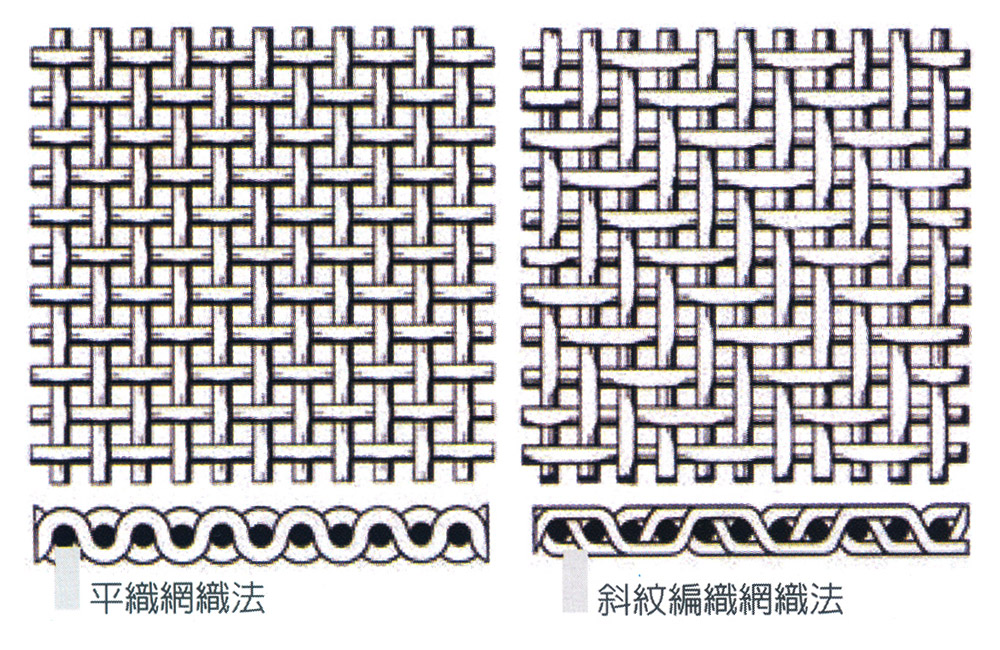

  • WeavingPlain Weave, Twill Weave & Dutch Wire Mesh
  • PerformanceWeave Wire Mesh has good acid/base, heat, abrasion and tense resistance.

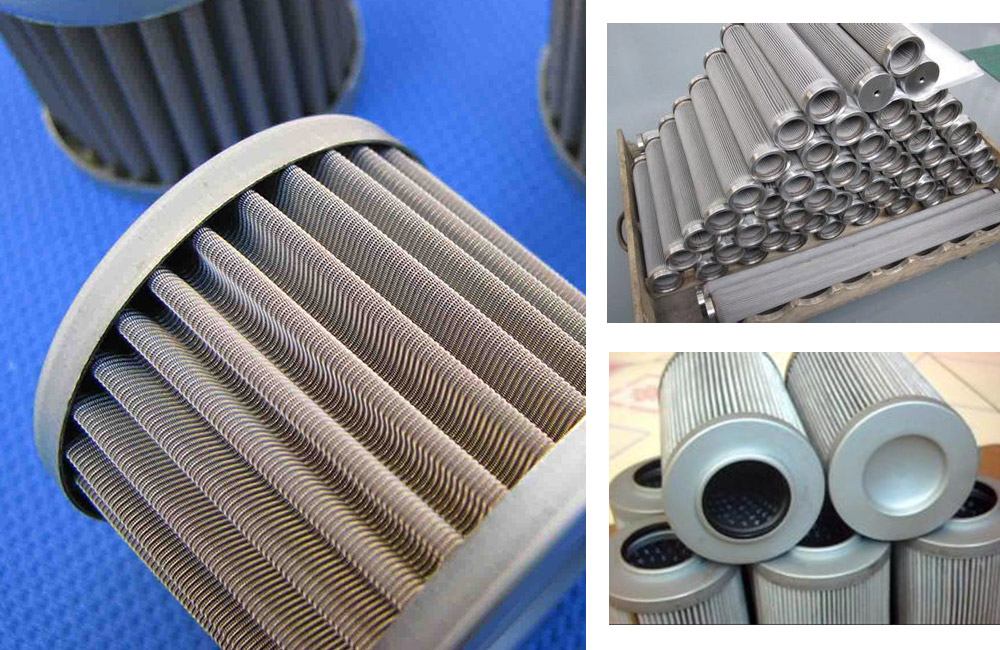

  • UsageFossil Fuel Industry filter, Electric Plating Mesh, Food Industry, Medical Industry and Machinery Industry.
  • Specification Table



    Please contact us for detail information, thank you.



    Mesh Dia. (mm) Wide Length(m)

    4

    		 1.60 1m or 4ft 30m
    8 0.70 1m or 4ft 30m
    10 0.51 1m or 4ft 30m
    14 0.51 1m or 4ft 30m
    16 0.46 1m or 4ft 30m
    20 0.4 1m or 4ft 30m
    40 0.25 1m or 4ft 30m
    50 0.23 1m or 4ft 30m
    60 0.16 1m or 4ft 30m
    80 0.12 1m or 4ft 30m
    100 0.10 1m or 4ft 30m
    120 0.08 1m or 4ft 30m
    150 0.065 1m or 4ft 30m
    200 0.053 1m or 4ft 30m
    250 0.040 1m or 4ft 30m
    300 0.040 1m or 4ft 30m
    325 0.035 1m or 4ft 30m
    400 0.030 1m or 4ft 30m
    500 0.025 1m or 4ft 30m
    635 0.020 1m or 4ft 30m
